Hypersonic Nose Cone Cryogenic Cooling: Feasibility and RF Effects 🧊

PODCAST: The sources discuss the concept of cryogenic cooling for hypersonic vehicle nose cones as a method to mitigate the plasma sheath effect. This plasma, formed by intense aerodynamic heating at hypersonic speeds, can cause communication blackouts and increase radar detectability by interacting with radio frequency (RF) signals. The primary document, “Hypersonic Nose Cone Cryogenic Cooling,” details the feasibility, engineering challenges, and predicted effects of this cooling on local plasma properties and RF interaction, noting that the effect is localized to the near-wall region. A secondary source, “Pasted Text,” responds to this by outlining a countermeasure strategy using advanced sensor fusion and AI (SCYTHE RF) to detect and potentially counter such maneuverable hypersonic objects despite their plasma-modifying stealth capabilities. Both sources acknowledge that while cryogenic cooling can reduce local electron density and modify plasma gradients, its overall impact on a vehicle’s broader RF signature remains uncertain, emphasizing the need for sophisticated detection methods to address this evolving threat.

Cryogenic cooling of hypersonic nose cones is a method employed to manage the extreme heat generated during high-speed hypersonic flight, where aerodynamic heating can reach thousands of degrees Celsius.

Methods and Technologies:

• Internal Convective Cooling: This approach utilizes a cooled airframe structure, often relying on hydrogen fuel flow to dissipate the heat. Materials like beryllium, metal matrix composites, or aluminum alloys can be used for the structure, with consideration given to their thermal conductivity and structural properties. Tubular or plate-fin sandwich panels can be incorporated for efficient cooling.

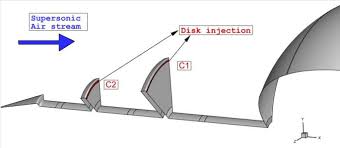

• External Coolant Injection: This technique involves injecting a coolant (e.g., air, helium, nitrogen) from the nose cone to create a protective layer and reduce heat transfer to the main body. Transient jets can push the bow shock upstream, further reducing heat transfer. Research has explored the effectiveness of different coolants like helium and carbon dioxide.

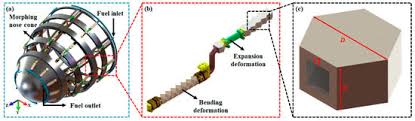

• Composite Cooling Modes: These approaches combine different cooling methods. One example is the combination of a mechanical spike with coolant injection, where the spike deflects the airflow and the injected coolant reduces the temperature near the nose cone. Another example involves a multi-cellular nose cone made of high-temperature resistant materials (alloy or ceramic) with internal coolant channels and spray orifices.
• Transpiration Cooling: This involves injecting a gaseous coolant through a porous nose cone, dissipating heat through convection and creating a protective layer. The effectiveness depends on the coolant’s heat capacity.
• Supercooling with Cryogenic Power: Some concepts involve using substances like liquid hydrogen or nitrogen within the nose cone to supercool it and interact with the ambient air, potentially mitigating the shock front and reducing drag.
• Advanced Cooling Systems: Recent advancements include transpiration cooling systems that mimic sweating, expelling a fluid that evaporates to form a protective layer. Another innovation is a novel cooling device developed in China, which utilizes aerodynamic heating to drive an active cooling cycle and achieve autonomous pressurization and cooling.

Benefits:

• Reduced heat transfer: Cryogenic cooling significantly reduces the extreme heat loads on the nose cone.
• Improved flight performance: Effective cooling allows for the use of materials that might otherwise fail under high temperatures, enabling longer flight times and greater freedom in missile design.
• Enhanced payload capacity: By managing thermal loads, actively cooled airframes can potentially increase the payload capacity compared to uncooled designs.

Challenges:

• Complex hypersonic flow: Evaluating the thermal efficiency of cooling techniques is challenging due to the intricate nature of hypersonic flow and shock formation around the nose cone.
• System complexity: Implementing cryogenic cooling systems can add complexity to the vehicle design, requiring careful consideration of factors like coolant storage, distribution, and control.
• Material compatibility: Selecting materials that can withstand both the extreme temperatures of hypersonic flight and the cryogenic environment of the cooling system is crucial.

In summary, cryogenic cooling plays a critical role in enabling hypersonic flight by effectively managing the severe aerodynamic heating experienced by the nose cone. Ongoing research focuses on developing innovative materials, cooling techniques, and integrated systems to further enhance the capabilities and performance of hypersonic vehicles.

Implementing cryogenic nose cone cooling for hypersonic vehicles presents a formidable array of engineering challenges, primarily stemming from the need to manage extreme temperatures and complex systems within a constrained environment.

The most significant engineering challenges include:

• Managing Extreme Thermal Loads
  • The nose cone is subjected to colossal and continuous aerodynamic heat fluxes, ranging from hundreds to several thousand W/cm² (up to 10 MW/m² or more). The cooling system must have sufficient capacity to continuously remove this intense heat to maintain cryogenic temperatures internally.
  • The system must also exhibit a rapid response time to adapt to transient heating conditions during flight, such as rapid maneuvers or changes in altitude.
• Material Selection and Design
  • Materials must withstand an unprecedented juxtaposition of extreme environments: cryogenic temperatures (~20-77 K) on the internal surfaces and hypersonic temperatures (>2000 K) and heat fluxes on the external surface.
  • Cryogenic Embrittlement: Many conventional structural materials become brittle and lose fracture toughness at cryogenic temperatures. Specific alloys (e.g., austenitic stainless steels, certain aluminum or titanium alloys) or composites designed for cryogenic service are required. Hydrogen embrittlement is a particular risk if liquid hydrogen (LH2) is used as the coolant.

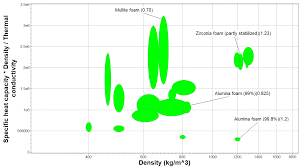

  • Thermal Shock and Stress: The enormous temperature difference across the nose cone wall (potentially >2000 K over millimeters) generates severe thermal stresses. Materials need high thermal shock resistance, which is generally favored by high thermal conductivity, a low coefficient of thermal expansion (CTE), and high fracture toughness. Matching CTEs between different layers in a composite structure is critical.
  • Thermal Conductivity: Efficient heat removal requires high thermal conductivity through the wall material to the coolant channels, which can conflict with the high-temperature capabilities of external ceramics.
  • Fabrication Complexity: Manufacturing a nose cone with integrated, complex internal cooling channels using high-temperature, often difficult-to-process materials (like Ultra-High Temperature Ceramics – UHTCs or Ceramic Matrix Composites – CMCs) is a major fabrication challenge. A monolithic material solution is unlikely, necessitating multi-material, composite, or functionally graded structures.
• System Weight, Volume, and Complexity
  • An active cryogenic cooling system inevitably adds significant mass, volume, and complexity compared to passive thermal protection systems (TPS).
  • This includes bulky and heavy cryogenic storage tanks (which need robust pressure containment and extensive insulation to minimize boil-off). The very low density of LH2 exacerbates volume requirements.
  • The system also requires reliable cryogenic pumps, extensive insulated plumbing, heat exchangers, valves, sensors, and a sophisticated control system to manage flow rates and temperatures.
  • Cryogenic pumps and control systems consume electrical power, adding to the vehicle’s power budget.
• Safety Considerations
  • The use of cryogenic fluids, especially liquid hydrogen (LH2), introduces significant safety hazards.
  • Cryogenic Hazards: Direct contact can cause severe cold burns, and materials become brittle.
  • Leakage: High pressures, vibrations, and thermal stresses during flight make leaks a primary concern. Hydrogen, being the smallest molecule, is particularly prone to leaking.
  • Flammability/Explosion (LH2): Hydrogen has an extremely wide flammability range (4-75% in air) and a very low minimum ignition energy, making it easily ignitable. This poses a risk of fire or explosion if leaks occur.
  • Pressure Buildup: Rapid vaporization or leaks can cause dangerous pressure increases in confined spaces, necessitating reliable venting systems.
  • Handling and Infrastructure: Specialized ground infrastructure, procedures, and personnel training are required for safe ground handling, storage, and refueling.

Due to these profound challenges, the Technology Readiness Level (TRL) for cryogenic cooling in hypersonic applications is currently estimated as “Very Low (1-2)”.

Implementing cryogenic nose cone cooling addresses several significant Radio Frequency (RF) challenges inherent to hypersonic flight. These challenges primarily stem from the formation of a plasma sheath around the vehicle, which severely impacts communication, navigation, and detectability.

Here are the most significant RF challenges:

• Communication Blackout:
  • As a hypersonic vehicle (typically Mach 5 and above) travels through the atmosphere, intense aerodynamic heating from a strong shock wave and frictional forces causes the surrounding air molecules to dissociate and ionize.
  • This process generates a layer of partially ionized gas, known as the plasma sheath, enveloping the vehicle, particularly near stagnation points like the nose cone. This sheath contains significant concentrations of free electrons and ions, with electron number densities (Ne) potentially exceeding 10^13 cm⁻³.
  • The free electrons within the plasma strongly interact with electromagnetic waves in the RF spectrum, leading to absorption, reflection, refraction, and phase shifts of RF signals.
  • When the electron density is sufficiently high, the plasma frequency (ωp), which scales with the square root of Ne, can exceed the frequency of the RF signal (ω). Under these conditions (ω < ωp), the plasma sheath becomes opaque to the RF signal, reflecting or severely attenuating it.
  • This phenomenon is known as “communication blackout,” which disrupts vital communication, telemetry, and navigation signals (e.g., GPS). Typical blackout-inducing densities for S, C, and X-band frequencies range from 10^11 to 10^13 cm⁻³.
• Alteration of Radar Cross Section (RCS) and Detectability:
  • The plasma sheath fundamentally alters the vehicle’s interaction with radar systems.
  • The ionized layer itself can scatter and reflect radar waves, thereby changing the vehicle’s Radar Cross Section (RCS).
  • Depending on the plasma properties (Ne, collision frequency ν), the radar frequency, and the viewing angle, the plasma can either enhance or reduce the apparent RCS compared to the bare vehicle.
  • Mitigating these plasma-induced effects is essential not only for maintaining command, control, and communication but also for potentially reducing the vehicle’s detectability by RF sensors. The plasma sheath itself can act as a shield to block or scatter active radar signals, making it challenging for traditional tracking systems to detect and track maneuverable (jinking) hypersonic objects.
• Impact on Onboard RF Systems and Signal Propagation:
  • Beyond blackout, the plasma sheath also impacts other RF signal interactions. The electron temperature (Te) influences electron-impact ionization rates and electron transport properties, which can affect wave absorption.
  • The collision frequency (ν), representing momentum-transfer collisions between electrons and heavy particles, is the primary factor governing the absorption (attenuation) of RF waves propagating through the plasma, even when the RF frequency is above the plasma frequency.
  • The plasma sheath is inherently inhomogeneous, with spatial gradients in Ne, Te, and ν. These gradients cause the plasma’s refractive index to vary spatially, leading to refraction (bending) of RF waves, as well as reflection and scattering, particularly where gradients are steep. Accurately modeling these effects requires complex numerical techniques.

Cryogenic nose cone cooling is a proposed solution that directly addresses these RF challenges by attempting to modify the plasma sheath. By maintaining the nose cone surface at extremely low temperatures, it aims to extract thermal energy from the adjacent gas, lowering local gas temperature and suppressing ionization reactions, while favoring recombination processes. This is expected to lead to a substantial reduction in local electron density (Ne) near the cooled surface. The resulting lower Ne and altered collision frequency are intended to reduce RF signal attenuation and reflection, thereby improving communication and potentially lowering the nose cone’s contribution to the overall RCS. However, the cooling effect is localized, primarily influencing the near-wall boundary layer, and its impact on the larger, uncooled portions of the plasma sheath that dominate the overall RF signature remains uncertain. Despite cooling, even cryogenically cooled plasma can still interact with UHF/VHF bands, creating detectable spectral reflectance distortions, Doppler shifts, and signal attenuation signatures that could be exploited for detection.
