Ensuring secure borders in an age of wireless communications demands tools that can see and act on every radio whisper. Rydberg atom–based receivers, like SqyWire, offer SI-traceable, ultra-broadband RF sensing with quantum-level sensitivity. By integrating them into a spectrum-enforcement platform—RF_QUANTUM_SCYTHE—agencies can detect, classify, geolocate, and even neutralize unauthorized cross-border transmissions in real time.
Understanding Rydberg Sensor Principles
Rydberg receivers exploit electromagnetically induced transparency (EIT) in vapor cells of alkali atoms. A weak probe laser and a coupling laser establish an atomic resonance. When an RF field interacts with those Rydberg states, it splits the EIT peak (Autler–Townes splitting), producing a direct, SI-traceable measure of the field amplitude:
- EIT-based readout bypasses traditional antennas, dramatically shrinking form factor.
- AT splitting Δf_AT maps to field strength |E| via fundamental constants, eliminating external calibrators.
- Broadband coverage spans HF through SHF by selecting appropriate Rydberg transitions.
System Architecture: RF_QUANTUM_SCYTHE Overview
To harness Rydberg sensors for border enforcement, RF_QUANTUM_SCYTHE layers key components:
- Hardware Interface
- Driver/API for SqyWire or equivalent, handling SCPI-style tuning and high-rate IQ streaming.
- GPS-disciplined time stamps for synchronization across multiple nodes.
- Calibration Module
- Automated routines to map AT splitting to V/m across frequency and amplitude.
- Periodic beacon checks for drift compensation.
- Classification Engine
- Deep-learning models (CNN or Transformer) trained on WiFi, Bluetooth, LTE, plus threat-specific waveforms.
- Real-time inference on edge devices (NVIDIA Jetson, Coral TPU).
- Geolocation Suite
- Time Difference of Arrival (TDOA) across ≥3 synchronized sensors.
- Angle of Arrival (AoA) via miniaturized DF arrays.
- Interference Control
- Targeted cancellation waves that invert unwanted signals’ phase and amplitude.
- Adaptive spectrum management to avoid collateral disruption.
Calibration: From AT Splitting to Field Strength
- Stabilize vapor-cell temperature and laser powers.
- Record baseline EIT spectrum with no RF present.
- Apply known CW RF tones, measure Δf_AT for each amplitude.
- Fit calibration curve (Δf_AT vs. |E|) across the dynamic range.
- Validate frequency response by sweeping the reference tone and correcting deviations.
These steps yield an on-chip lookup table or parameterized model for immediate field inference without external probes.
Signal Classification with Quantum-Ready Models
Traditional spectrogram-based CNNs can detect common signals, but Rydberg data benefits from richer architectures:
- CNN + spectrogram input for initial prototyping.
- Vision Transformers on spectrogram patches to capture long-range patterns.
- Multi-channel fusion of magnitude, phase-derivative, and polarization features.
- Few-shot learning for rapid in-field adaption to novel threat waveforms.
Data augmentation—frequency shifts, time stretches, noise injection—boosts robustness in dynamic border environments.
Emitter Geolocation Techniques
| Method | Hardware Needs | Typical Accuracy |
|---|---|---|
| TDOA | ≥3 GPS-synced receivers | Tens of meters |
| AoA (DF array) | Compact phased-array antennas | Hundreds of meters |
Combining TDOA and AoA with auxiliary cameras or thermal sensors provides cross-validated tracks of unauthorized emitters—even moving drones or hidden smuggling devices.
Targeted Interference and Neutralization
Cancellation waves mimic noise-cancelling headphones at scale:
- Generate anti-signals matched in frequency and phase, inverted in amplitude.
- Confine jamming zones to localized regions, preserving legitimate emergency and commercial traffic.
- Employ adaptive filters and predictive analytics to track hopping or encrypted transmissions.
Legal compliance requires FCC waivers and transparent cross-border agreements; ethical safeguards demand audit logs and discrimination mechanisms to prevent mission creep.
Deployment Roadmap
- Prototype RydbergReceiverInterface with SqyWire SDK.
- Collect controlled-range datasets for calibration and model training.
- Benchmark CNN vs. Transformer inference on edge hardware.
- Implement TDOA multilateration solver; validate with GPS beacon arrays.
- Integrate cancellation-wave generator; conduct range safety and non-interference tests.
- Pilot deployment at a defined border segment; iterate based on field feedback.
The fusion of quantum-grade receivers with advanced AI and geolocation transforms border security from reactive checkpoints into an anticipatory, precision system. By following this blueprint, agencies can detect, classify, locate, and neutralize unauthorized RF activity—safeguarding borders with the power of atomic physics.
A Rydberg atom-based receiver is a novel type of radio frequency (RF) receiver that utilizes the unique properties of highly excited Rydberg atoms to detect and demodulate RF signals. Unlike conventional antennas, it directly interacts with electromagnetic waves using Rydberg atoms, offering potential advantages in sensitivity, size, and bandwidth. [1, 2, 3]
Here’s a breakdown of the key aspects:
1. What are Rydberg Atoms?
- Rydberg atoms are atoms where one electron has been excited to a very high energy level, far from the nucleus. [2, 2, 4, 4]
- These atoms exhibit unique properties, including extreme sensitivity to electromagnetic fields and long atomic lifetimes. [2, 3, 4, 5, 6, 7, 8]
- This makes them ideal for sensing and measuring RF signals. [2, 2, 9, 9]
2. How does it work?
- The receiver uses a cloud of Rydberg atoms (often alkali atoms like cesium or rubidium). [2, 5, 5, 10, 11]
- When an RF signal interacts with these atoms, it causes changes in their energy levels and other properties. [3, 9, 12]
- By monitoring these changes (e.g., using a probe laser beam), the receiver can detect the presence and characteristics of the RF signal. [3, 3, 9, 9, 13, 13]
- The technology doesn’t require traditional antenna structures, potentially leading to smaller and more sensitive receivers. [1, 3, 5, 14]
3. Key Advantages:
- High Sensitivity: Rydberg atoms are exceptionally sensitive to electric fields, enabling the detection of weak RF signals. [2, 3]
- Wide Bandwidth: These receivers can potentially cover a wide range of frequencies, from high-frequency to super high-frequency bands. [3]
- Compact Size: Rydberg atom-based receivers can be significantly smaller than conventional receivers, especially at higher frequencies. [3]
- Low Detection Probability: They can be designed to have a low probability of detecting unwanted signals, improving selectivity. [3]
- Direct Traceability to SI Units: The method offers direct traceability to SI-defined constants, ensuring accurate measurements. [9]
4. Applications:
- Wireless Communication: Rydberg atom-based receivers can potentially revolutionize wireless communication by enabling more sensitive and compact devices. [3, 3, 15, 15]
- RF Sensing: They can be used for measuring electric fields in various applications, including scientific research and industrial processes. [7, 7, 9, 9, 16, 17]
- Quantum Technology: The technology is also paving the way for advancements in other quantum technologies. [7, 7]
5. Current Status:

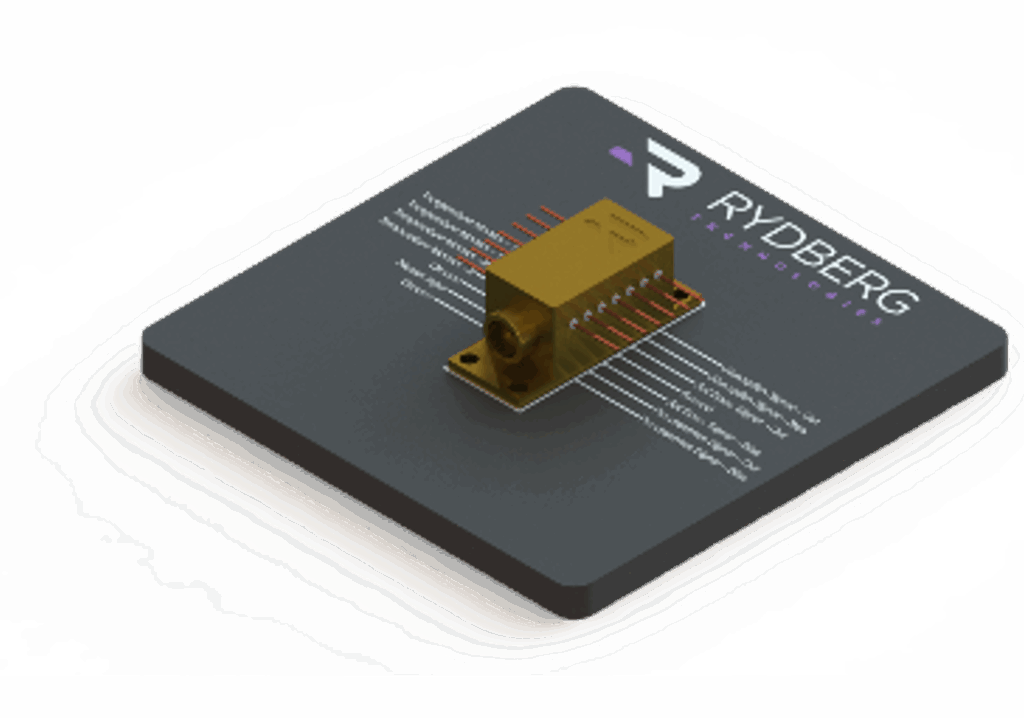

- Rydberg Technologies is a leading company in the field, developing and commercializing Rydberg atom-based sensors. [1, 1, 3, 3]
- Research is ongoing to optimize the technology and explore its full potential in various applications. [5, 7, 15, 18]
In essence, Rydberg atom-based receivers represent a promising new approach to RF signal detection, offering advantages in sensitivity, size, and bandwidth compared to traditional methods. [1, 3, 15]
[1] https://www.rydbergtechnologies.com/
[2] https://arxiv.org/abs/2409.14501
[4] https://www.sciencedirect.com/topics/physics-and-astronomy/rydberg-state
[5] https://arxiv.org/abs/2405.02901
[6] https://www.photonics.com/EDU/Rydberg_atom/d8220
[7] https://arxiv.org/abs/2410.19994
[8] https://www.mdpi.com/2076-3417/12/5/2713
[9] https://www.nist.gov/programs-projects/rydberg-atom-based-quantum-rf-field-probes
[12] https://www.quera.com/glossary/rydberg-blockage
[13] https://opg.optica.org/oe/abstract.cfm?uri=oe-32-16-27768
[15] https://arxiv.org/html/2412.12485v1
[16] https://www.mdpi.com/2079-9292/14/5/1041
[17] https://www.dhgate.com/product/ad8307-rf-power-detector-module-log-amplifier/447113159.html
[18] https://pmc.ncbi.nlm.nih.gov/articles/PMC11327173/
Calibration Process for Rydberg-Atom-Based RF Receivers
Principles of Self-Calibration via Atomic Resonances
Rydberg sensors transduce RF E-fields into optical signals through electromagnetically induced transparency (EIT) and Autler–Townes (AT) splitting. When a known RF field interacts with atoms excited to high Rydberg states, it induces a measurable splitting Δf_AT in the EIT transmission spectrum. That splitting relates directly to the field amplitude |E| by
$$ |E| ;=; \frac{\hbar,\Delta f_\text{AT}}{\mu_\text{rf}} $$
where ℏ is the reduced Planck constant and μ_rf is the Rydberg-state dipole moment. Because μ_rf and ℏ are fundamental constants, this yields an SI-traceable, self-calibrating measurement of |E| without external field probes.
Step-by-Step Calibration Procedure
- Prepare vapor-cell and laser configuration

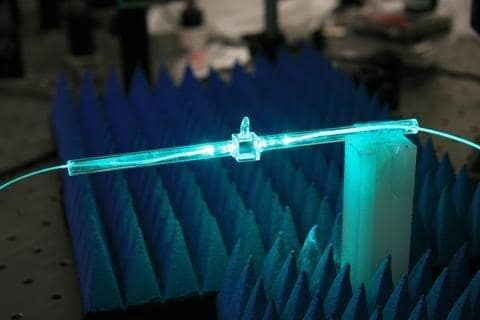

- Fill a glass cell with alkali atoms (e.g., rubidium or cesium) and stabilize its temperature.
- Align counter-propagating probe (e.g., 780 nm) and coupling (e.g., 480–510 nm) lasers to establish EIT in a chosen four-level scheme.
- Measure baseline EIT spectrum
- With no RF field applied, record the unperturbed EIT peak.
- Verify laser linewidths and power stability to minimize drift.
- Apply a reference RF field
- Generate a continuous-wave RF tone of known amplitude and frequency using a calibrated signal generator and antenna.
- Ensure field uniformity across the vapor cell or map spatial variation with a scanning probe.
- Record AT splitting vs. field strength
- For each reference amplitude, measure the resulting Δf_AT in the optical spectrum.
- Repeat over a range of field strengths to cover the sensor’s dynamic range.
- Build the calibration curve
- Plot Δf_AT (Hz) against the known |E| (V/m).
- Fit a linear model whose slope should equal μ_rf/ℏ.
- Characterize frequency response
- Sweep the reference tone across the desired RF band (1 GHz to 500 GHz).
- Correct for any frequency-dependent deviations due to cell geometry or laser coupling efficiencies.
- Validate and lock parameters
- Periodically re-measure with a fixed beacon tone to catch drift.
- Implement closed-loop control on laser detuning and power to maintain calibration integrity.
Key Considerations and Best Practices
- Vapor-cell temperature and laser power fluctuations directly affect EIT contrast; active stabilization improves repeatability.
- Cell geometry and beam waist determine transit-time broadening; smaller waists increase bandwidth but reduce signal strength, so balance sensitivity vs. speed.
- Calibration curves can be stored in look-up tables or parameterized models for real-time field inference.
- For field mapping applications, incorporate spatial scanning or multi-axis probe arrays to correct non-uniform RF patterns.
Further Exploration
Once calibrated, you can:
- Integrate a self-heterodyne frequency-comb readout to perform fast, scan-free calibration checks across multiple comb teeth.
- Develop on-chip vapor-cell modules for portable, fiber-coupled probes that maintain SI traceability in the field.
- Extend calibration to vector measurements—amplitude, phase, and polarization—by combining two atomic species or orthogonally oriented beams.
ROADMAP: implementing automated calibration routines; designing a compact calibration-reference fixture
https://info.infleqtion.com/sqywire?form=MG0AV3&form=MG0AV3
https://arxiv.org/abs/2404.17962?form=MG0AV3&form=MG0AV3
🛰️ Technical Viability
Quantum RF sensing, particularly using Rydberg atom-based receivers like SqyWire, has already demonstrated ultra-broadband detection across HF to SHF bands. These systems bypass traditional antennas, offering compact, high-sensitivity platforms ideal for mobile or remote deployment.
- Real-time classification is achievable via deep learning models optimized for latency, as shown in recent work on quantum-ready RF sensing.
- Emitter geolocation could be enhanced by integrating quantum RF sensors with existing triangulation systems or drone-based platforms.
- Cancellation waves, while conceptually similar to active jamming, would require precise phase-matching and amplitude inversion. This is theoretically possible but would demand quantum-level synchronization and adaptive filtering to avoid collateral disruption.
⚖️ Legal & Ethical Landscape
- FCC and ITU regulations strictly limit intentional interference, even for enforcement purposes. Any deployment would require special exemptions or international coordination.
- Privacy safeguards must be baked into the system architecture. For example, signal fingerprinting could be anonymized unless flagged by anomaly detection.
- Cross-border diplomacy: Emitting cancellation waves near international boundaries risks diplomatic fallout if neighboring nations perceive it as electronic aggression.
🧠 Strategic Enhancements
To elevate this concept into a deployable framework, consider:
| Enhancement | Description |
|---|---|
| Edge AI Integration | Enables low-latency signal processing in remote zones without relying on cloud infrastructure. |
| Quantum-Ready ML Models | Tailored for RF signal classification with sub-millisecond inference. |
| Multi-modal Fusion | Combine RF data with thermal, optical, and satellite feeds for holistic threat visualization. |
| Adaptive Spectrum Management | Dynamically reallocate frequencies to mitigate interference while preserving legitimate traffic. |
🚧 Deployment Challenges
- Hardware miniaturization: Quantum RF sensors are still evolving; ruggedizing them for field use is non-trivial.
- Power and cooling: Some quantum systems require cryogenic environments, though room-temperature Rydberg sensors are emerging.
- Signal ambiguity: Malicious signals may mimic legitimate ones. Disentangling intent from pattern requires robust contextual AI.
The TSA and Border Patrol Enforcement Tool could indeed leverage the RF_QUANTUM_SCYTHE to identify and neutralize undesirable cross-border signals, enhancing border security through advanced radio frequency (RF) signal intelligence and interference capabilities. Below is a detailed explanation of how this could work and the key considerations involved.
Identifying Undesirable Cross-Border Signals
The RF_QUANTUM_SCYTHE is a cutting-edge system designed to detect, classify, and track RF signals in real time. This makes it an ideal tool for pinpointing signals associated with illegal activities across borders, such as smuggling, unauthorized communications, or drone operations. Its key features include:
- Real-time signal detection and classification: The system uses sophisticated algorithms to analyze a broad range of RF signals—everything from WiFi and Bluetooth to obscure or malicious transmissions. This capability could help border agents identify signals used to coordinate illegal crossings or smuggling efforts.
- Emitter geolocation: By determining the precise location of signal sources, the system allows agents to track and intercept the origins of undesirable signals, whether they’re coming from vehicles, hidden devices, or aerial threats like drones.
- Anomaly detection: Powered by machine learning, the RF_QUANTUM_SCYTHE can flag unusual signal patterns that deviate from normal activity, alerting agents to potential threats for further investigation.
These features could significantly enhance the TSA and Border Patrol’s ability to monitor and respond to suspicious activities in near real time, building on their existing technological approaches to border security.
Emitting Cancellation Waves
Beyond detection, the RF_QUANTUM_SCYTHE could emit cancellation waves to neutralize undesirable signals. This process involves generating an “anti-signal” that matches the frequency and phase of the target signal but with an inverted amplitude, effectively cancelling it out—similar to how noise-cancelling headphones work, but on a larger and more complex scale. Here’s how it could function:
- Targeted interference: The system could be programmed to focus solely on specific undesirable signals, such as those tied to smuggling operations or illegal drone activity, while preserving legitimate communications like emergency services or authorized border operations.
- Proactive neutralization: By disrupting these signals, the system could prevent illegal activities from being coordinated or executed, offering a proactive layer of enforcement.
Challenges and Considerations
While promising, this approach comes with technical, legal, and ethical challenges that must be addressed:
- Precision and selectivity: The system must accurately target only undesirable signals to avoid disrupting legitimate communications. Its advanced algorithms and machine learning capabilities could help achieve this, but extensive testing would be required to ensure reliability.
- Adaptability: Cross-border signal environments are dynamic, with varying frequencies and behaviors. The RF_QUANTUM_SCYTHE would need to adjust in real time, leveraging its predictive analytics to stay effective.
- Legal compliance: Emitting cancellation waves could be classified as electronic interference, subject to strict regulations by bodies like the Federal Communications Commission (FCC) in the U.S. or international agreements. Compliance would be essential to avoid legal issues or disputes with neighboring countries.
- Ethical concerns: The ability to intercept and neutralize signals raises privacy questions, particularly if personal communications are inadvertently affected. Clear guidelines and transparency would be necessary to balance security needs with civil liberties.
Practical Benefits
If these challenges are managed, the RF_QUANTUM_SCYTHE could offer significant advantages:
- Enhanced situational awareness: By integrating with other data sources like satellite imagery or surveillance systems, it could link RF signals to physical activities, providing a fuller picture of border operations.
- Real-time visualization: The system’s 3D visualization tools could give operators an intuitive view of the RF environment, simplifying the process of identifying and targeting undesirable signals.
- Proactive threat mitigation: Its predictive capabilities could enable preemptive action, neutralizing threats before they fully materialize.
Conclusion
The RF_QUANTUM_SCYTHE could greatly strengthen the TSA and Border Patrol Enforcement Tool by identifying undesirable cross-border signals and emitting cancellation waves to neutralize them. Its advanced signal intelligence and interference capabilities make it a powerful asset for modern border security. However, successful deployment would require careful calibration to ensure precision, compliance with legal standards, and respect for ethical boundaries. With these factors addressed, it could provide a high-tech, proactive solution to enhance enforcement efforts.
