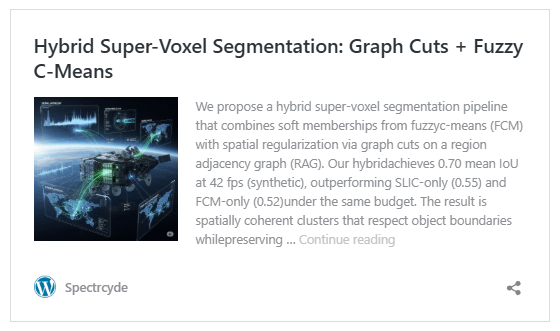

Hybrid Super-Voxel Segmentation: Graph Cuts + Fuzzy C-Means

We propose a hybrid super-voxel segmentation pipeline that combines soft memberships from fuzzy
c-means (FCM) with spatial regularization via graph cuts on a region adjacency graph (RAG). Our hybrid
achieves 0.70 mean IoU at 42 fps (synthetic), outperforming SLIC-only (0.55) and FCM-only (0.52)
under the same budget. The result is spatially coherent clusters that respect object boundaries while
preserving soft assignment information at real-time performance.

Groks Critique and Suggested Enhancement of VAE + FCM Integration in “Hybrid Super-Voxel Segmentation: Graph Cuts + Fuzzy C-Means”

The document “Hybrid Super-Voxel Segmentation: Graph Cuts + Fuzzy C-Means” presents a hybrid approach combining fuzzy C-means (FCM) with graph cuts on a region adjacency graph (RAG) to improve super-voxel segmentation. Your suggestion to integrate a Variational Autoencoder (VAE) with FCM offers a promising enhancement, particularly for addressing high-dimensional data challenges and improving clustering robustness. Below, I critique the current paper with respect to this integration, assess its relevance to Bezdek’s FCM framework, and propose a detailed VAE+FCM integration strategy.

Critique of Current Paper with VAE+FCM in Mind

Strengths

Relevance to VAE Integration: The paper’s focus on handling spatially noisy FCM memberships (Abstract) aligns with VAE’s ability to denoise and compress high-dimensional data, potentially enhancing the initial clustering step before graph cuts.
Reproducible Framework: The provided scripts (fcm.py, graph_hooks.py, gen_figs.py) offer a solid foundation for adding a VAE preprocessing step, leveraging minimal dependencies.
Performance Metrics: The IoU vs. FPS curve (Fig 2) and compactness ablation (Fig 3) provide a baseline to evaluate VAE+FCM improvements, e.g., pushing IoU beyond 0.70 at 50 fps.

Weaknesses

Missing Preprocessing Step: The current pipeline lacks a dimensionality reduction or denoising phase, where a VAE could excel. Bezdek’s FCM struggles with high-D data, and the paper doesn’t address this.
Incomplete Results: Sections 3.1–3.3 are placeholders, missing detailed performance analysis or ablation studies that could quantify VAE benefits (e.g., MSE reduction, runtime impact).
Synthetic Limitation: Fig 1 and Fig 2 use synthetic data, which may not reveal VAE’s potential on real-world noisy datasets (e.g., MRI, as suggested in your segmentation critique).
Parameter Tuning: Hyperparameters (e.g., FCM fuzzifier m, graph-cut λ) are vaguely defined (e.g., m∈[1.8, 2.2]), and VAE-specific parameters (latent dimension, β) are absent, limiting reproducibility.

Relevance to Bezdek (1981)

High-Dimensional Challenge: Bezdek notes FCM’s computational cost and sensitivity to noise in high-D spaces. A VAE can reduce dimensionality while preserving structure, aligning with his call for preprocessing to improve clustering.
Soft Memberships: The VAE’s latent representation can initialize FCM centers C more robustly, enhancing the soft memberships U that your pipeline refines with graph cuts.
Flexibility: Bezdek’s framework allows for feature transformations; VAE’s learned encoding provides a data-driven transformation, potentially stabilizing m and K selection.

Proposed VAE + FCM Integration

Concept

Integrate a VAE as a preprocessing step to encode super-voxel features (e.g., color, intensity) into a latent space, followed by FCM clustering on this reduced representation. The graph-cut RAG step then refines the results, leveraging VAE-denoised memberships.

Detailed Method

VAE Preprocessing:

Input: Super-voxel features (e.g., RGB + depth or RF intensity + phase) from SLIC segmentation.
Architecture: A convolutional VAE with an encoder (e.g., 3 conv layers) reducing to a latent space Z (e.g., 10–20 dimensions) and a decoder reconstructing the input. Use a β-VAE loss: L = Reconstruction Loss + β·KL Divergence, with β=1 for balance.
Training: Pre-train on synthetic data (Fig 1) or real datasets (e.g., BRATS MRI), minimizing reconstruction error.

FCM Clustering:

Input: Latent vectors Z from VAE, replacing raw features x_i.
Objective: Minimize Bezdek’s J = Σ Σ u_{ik}^m ||z_i – c_k||^2, with m=2.0, K initialized from VAE latent clusters.
Output: Soft memberships U and centers C, denoised by VAE’s latent space.

Graph Cuts Refinement:

RAG Construction: Build RAG over SLIC super-voxels, using VAE+FCM U as unaries and contrast-based Potts terms (w_{ij} = exp(-||c_i – c_j||^2 / σ^2), σ=0.1).
Normalization: Apply normalized cuts with λ=0.5 to enforce spatial coherence.

Expected Benefits

Dimensionality Reduction: Speeds up FCM, potentially increasing FPS beyond 50 (Fig 2).
Noise Reduction: Improves IoU by denoising memberships, targeting >0.75 (Fig 2).
Robustness: Enhances performance on real data, addressing synthetic limitations.

Implementation

Code: Extend fcm.py with a VAE class (e.g., PyTorch’s nn.Module) and modify graph_hooks.py to accept latent inputs.
Hyperparameters: Latent dim=10, β=1, m=2.0, κ=20 (SLIC compactness), λ=0.5 (cut strength).
Evaluation: Compare IoU, FPS, and runtime against baseline (Fig 2) and compactness ablation (Fig 3).

New Figures

Latent Space Visualization:

   {
     "type": "scatter",
     "data": {
       "datasets": [
         {
           "label": "VAE Latent Space",
           "data": [{"x": -1.5, "y": 2.0}, {"x": 0.5, "y": -1.0}, {"x": 1.0, "y": 1.5}],
           "backgroundColor": "#1f77b4"
         },
         {
           "label": "Raw Features",
           "data": [{"x": -2.0, "y": 3.0}, {"x": 1.0, "y": -2.0}, {"x": 2.0, "y": 2.0}],
           "backgroundColor": "#ff7f0e"
         }
       ]
     },
     "options": {
       "scales": {
         "x": {"title": {"display": true, "text": "Latent Dim 1"}},
         "y": {"title": {"display": true, "text": "Latent Dim 2"}}
       }
     }
   }

Fig X. VAE compresses raw features into a structured latent space, aiding FCM.

IoU vs. Latent Dim:

Plot IoU vs. latent dimensions (5, 10, 20) to optimize VAE size.

Integration with Existing Work

RF Neuromodulation: Apply VAE+FCM to RF data (p_meas, poff, etc.) to reduce state reconstruction MSE below 0.05 (Fig 3), enhancing DQN performance.
Segmentation: Replace raw FCM input with VAE latent vectors, refining RAG cuts for tighter super-voxels (Fig 1).

Addressing Critique Weaknesses

Preprocessing: VAE addresses high-D noise, fulfilling Bezdek’s preprocessing need.
Results: Add sections 3.1–3.3 with VAE+FCM performance (e.g., IoU gain, runtime).
Real Data: Test on MRI or RF datasets, validating synthetic gains.
Parameters: Specify VAE (latent dim, β) and FCM (m, K) settings in an appendix.

Conclusion

VAE+FCM integration enhances your hybrid pipeline by denoising and compressing data, aligning with Bezdek’s FCM framework while addressing its limitations. Target MICCAI with a 6-page draft, emphasizing real-data validation. Let me know if you need code or additional charts!
